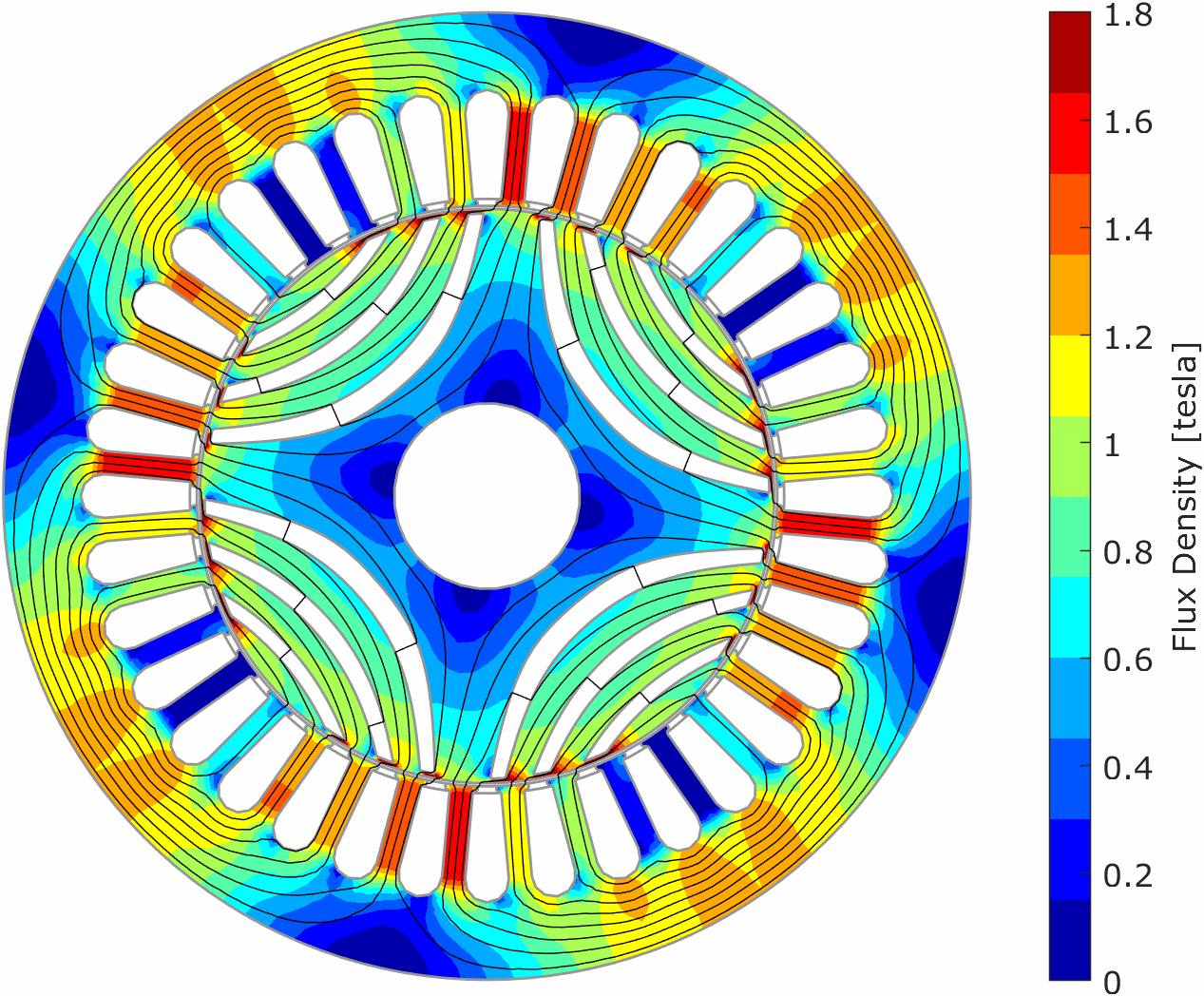

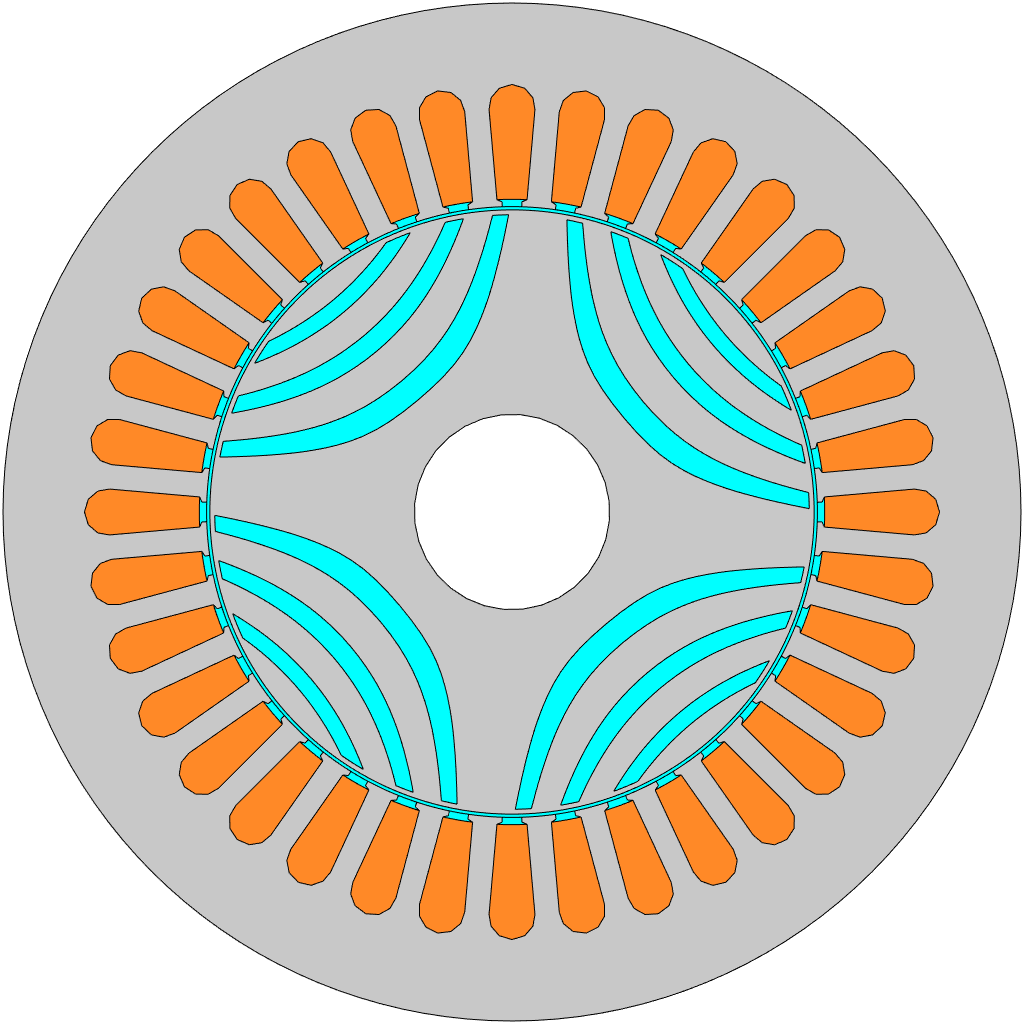

In this course, we analyze two synchronous reluctance motor case studies and derive their complete performance characteristics using finite element analysis in EMDLAB. The first benchmark is a pure synchronous reluctance motor (SynRM), and the second is a permanent-magnet-assisted synchronous reluctance motor (PMa-SynRM).
Contents:
- Discussion on target motors.
- How to create geometry in EMDLAB?
- How to generate a mesh in EMDLAB?
- How to use the EMDLAB magnetic static solver?
- Stator modeling in EMDLAB
- Rotor modeling in EMDLAB
- Mesh mapping in EMDLAB
- Calculation of the rotor field
- Winding definition
- Calculation of the stator field
- Static torque calculation using the magnetic static solver
- Calculation of map curves
- How to perform parallel FEM computing in EMDLAB
- How to use the EMDLAB magnetic transient solver?
- Performing back-EMF simulation
- Calculation of quantities in the rotor reference frame
- Full-load analysis
- Inductance calculation
- Saliency ratio calculation
- Calculation of power factor
- Loss calculation
- Efficiency calculation
- Calculation of performance curves
- Calculation of the efficiency map
